Emelcold Duct Type Air Conditioner 5 Ton Model: EMEL-DS60K

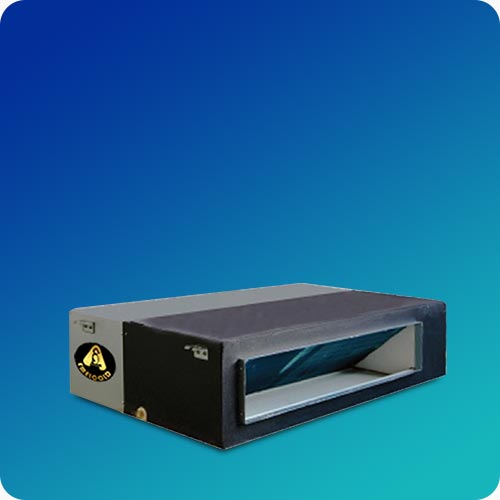

Indoor
Capacity Cooling (T1/T3) Btu/h: 52000/45500
Capacity Cooling (T1/T3) RT: 4.33/3.79
Capacity Cooling (T1/T3) kW: 15.24/13.33
Electric Data Power Supply V~,Hz,Ph : 380-415V,50,3
Electric Data Cooling Power Input(T1/T3) kW: 4.40/5.23
Electric Data Cooling Current (T1/T3) A: 7.40/8.80

Performance EER(T1/T3) (Btu/h)/W: 11.82/8.70
Performance Air Flow Volume (Hi/Med/Low) m3/h: 3100/2600/2200
Performance Air Flow Volume (Hi/Med/Low) CFM: 1820/1526/1291
Performance Noise Level(Hi/Med/Low) dB(A): 53/50/47
Performance External Static Pressure(ESP)Pa: 0~150
Dimension (W*D*H) Net: 1400mm * 820mm * 380mm
Dimension (W*D*H) Packing: 1580mm * 880mm * 450mm
Weight Net/Gross kg: 57/64
Piping Size Drainage mm(inch): DN20(R3/4)

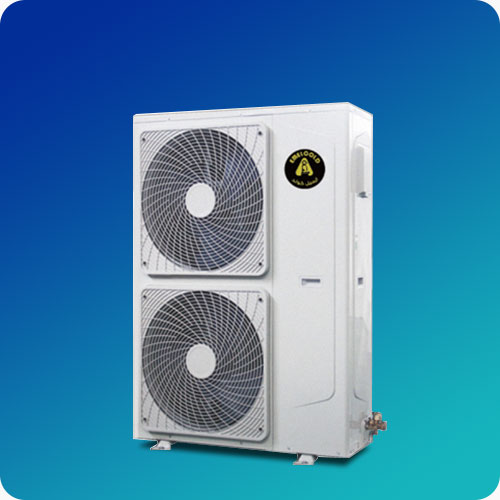

Outdoor
Electric Data Power Supply V~,Hz,Ph : 380-415,50,3
Performance Air Flow Volume (m3/h): 6400
Performance Air Flow Volume CFM: 3765
Performance Noise Level db(A): 60
Dimension (W*D*H) Net: 940mm * 368mm * 1366mm
Dimension (W*D*H) Packing: 1080mm * 460mm * 1500mm
Weight Net/Gross kg: 102/118
Pipping Size Liquid mm/inch: 9.52(3/8)
Pipping Size Gas mm/inch: 19.05(3/4)
Pipping Size Max. Length/Max. Height m: 50/30

Categories: , , Tag:

Multiple Protection

With Multiple Protection contents: High-pressure protection, Low-pressure protection, Compressor overloading protection,
High Ext. temperature protection, Phase protection (Phase-loss, phase-reverse), Over-heating protection, Anti-freezing protection, Sensor failure alarm,- Failure code display.etc. The Compressor could well run in reasonable operation range.

Self-adaption Technology
Automatic ESP Adjustment function will adapt the unit to any ducting with optimized air volume and minimized noise level
automatically, making more comfortable in any situation.

UP to 55°C Running
Enjoy excellent performance even under ambient temperature up to 55°C, Suitable for T3 operating condition.

Flexible Air Intake Options
Air intake from rears as standard, from bottom is optional.
The size of the plate from the bottom is the same as the flange from the back, which makes it convenient to change the installation
style due to different decoration requirements.
