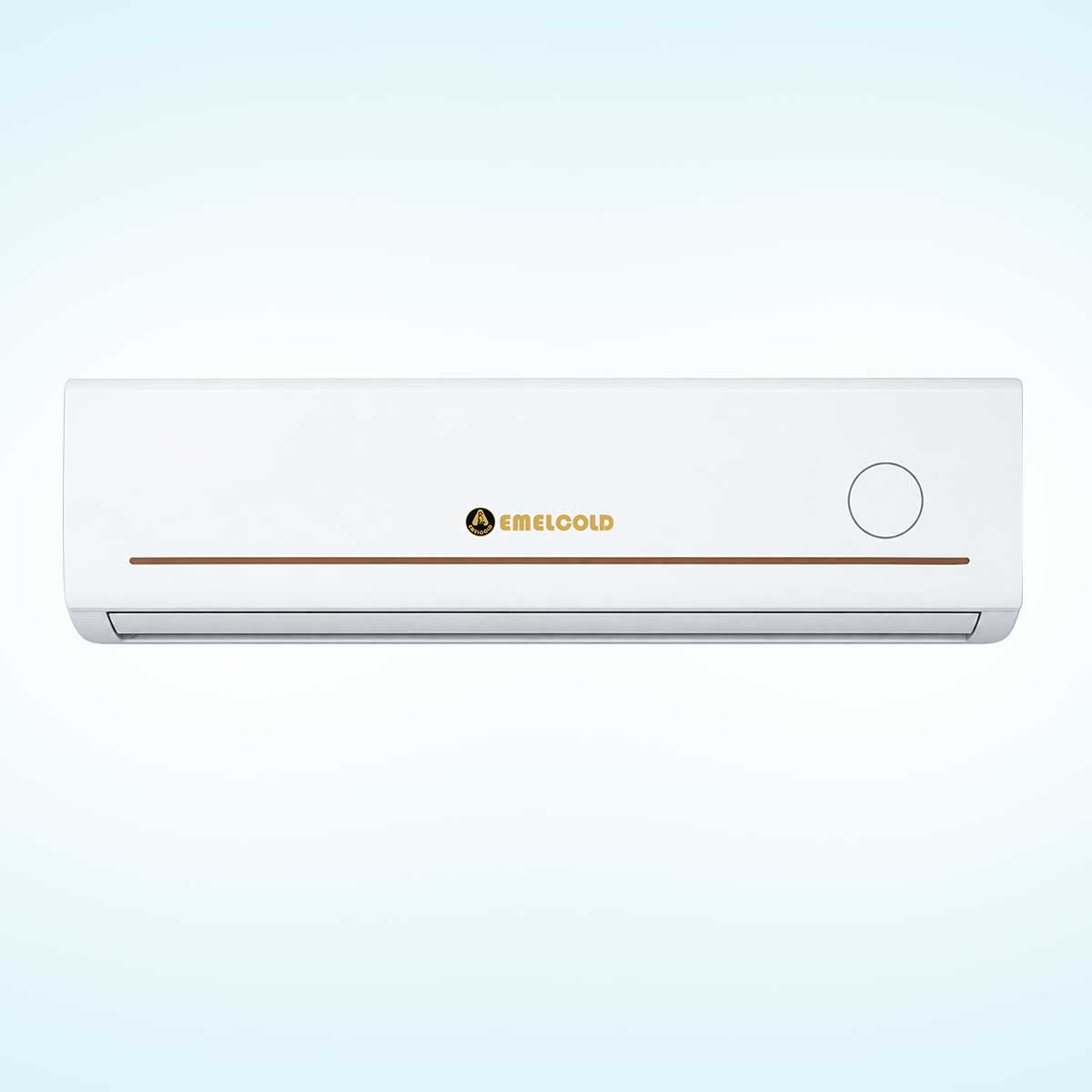

The Emelcold EMS2T36PM 3 Ton Split Air Conditioner features a Copeland piston compressor and cooling-only operation, delivering 34,500 BTU/h at T1 conditions and 30,500 BTU/h at T3 conditions. Its recommended application area is 45–65 m², subject to room conditions.

Enjoy convenient everyday cooling with 4D Airflow, Sleep Mode and a remote controller. The hidden LED display and 24-hour ON/OFF timer make it easy to monitor and schedule operation, while Auto Restart resumes operation after a power interruption.

The cooling system includes inner-grooved copper tubes, hydrophilic aluminium fins and indoor Gold Fins. Auto Clean adds convenience, while the curved indoor-unit design complements your room. The Piston Series supports T3 high-temperature operation up to 60°C.

Brand	Emelcold
Model	EMS2T36PM
Nominal Capacity	3 Ton
Operation Type	Cooling Only
Compressor Brand	Copeland
Compressor Type	Piston
Power Supply	1 Phase, 220–240 V / 50 Hz
Control Type	Remote Controller
Cooling Capacity — T1	34,500 BTU/h
Cooling Capacity — T3	30,500 BTU/h
Cooling Power Input — T1	2,960 W
Cooling Power Input — T3	3,570 W
Rated Current — T1	14.5 A
Rated Current — T3	16.5 A
EER — T1	11.65 (BTU/h)/W
EER — T3	8.54 (BTU/h)/W
Maximum Input Consumption	3,800 W
Maximum Current	21.5 A
Indoor Airflow	1,450 m³/h
Indoor Noise Level	50 dB(A)
Outdoor Noise Level	58 dB(A)
Indoor Unit Dimensions — W × H × D	1,160 × 245 × 325 mm
Outdoor Unit Dimensions — W × H × D	955 × 360 × 855 mm
Refrigerant Type	R410 — as listed in brochure
Refrigerant Charge	1,740 g
Liquid Pipe Size	9.52 mm
Gas Pipe Size	19.05 mm
Maximum Pipe Length	15 m
Maximum Height Difference	8 m
Recommended Application Area	45–65 m², subject to room conditions
