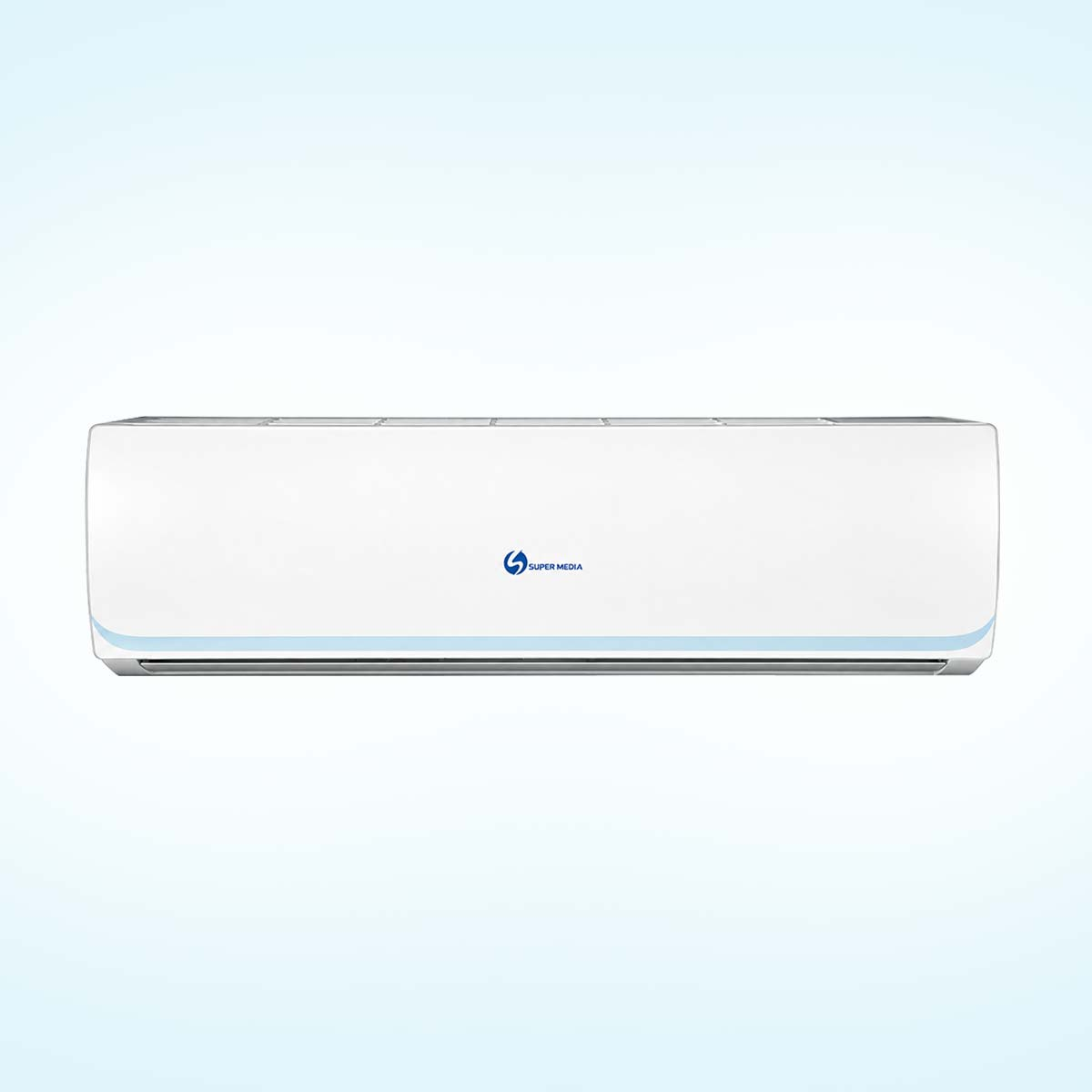

Super Media 1.5 Ton Piston Split Air Conditioner – SUM2T18PM

The Super Media SUM2T18PM is a 1.5-ton cooling-only split air conditioner with a Copeland piston compressor, T3 operation, and a hidden LED display. It features 4D airflow and convenient controls for everyday cooling.

  • Cooling capacity: 18,500 BTU/h at T1 / 16,200 BTU/h at T3
  • Copeland piston compressor
  • T3 operation with a stated working temperature up to 60°C
  • Hidden LED display and remote control
  • 4D airflow
  • Sleep Mode and Auto Clean
  • Auto Restart and 24-hour on/off timer
  • Indoor Golden Fins and inner-grooved copper tube
  • Power supply: 220–240 V / 50 Hz, single phase
Category:

Super Media 1.5 Ton Piston Split Air Conditioner

The Super Media SUM2T18PM is a cooling-only split air conditioner equipped with a Copeland piston compressor. It delivers a tested cooling capacity of 18,500 BTU/h at T1 conditions and 16,200 BTU/h at T3 conditions, with convenient remote-control operation.

Designed for Hot Environments

The Piston Series features T3 operation with a stated working temperature of up to 60°C. The SUM2T18PM combines a Copeland piston compressor with features designed for cooling in hot conditions.

Cooling and Airflow

4D airflow helps distribute cool air around the room. The unit features inner-grooved copper tubing, hydrophilic aluminium fins, and indoor Golden Fins.

Convenient Everyday Use

A hidden LED display provides temperature visibility, while Sleep Mode and a 24-hour on/off timer allow you to adjust operation to your daily routine. Auto Restart resumes operation after a power interruption, and Auto Clean provides an additional cleaning function.

Suitable Uses

Suitable for bedrooms, living rooms, offices, and other spaces requiring cooling. The catalog lists an application area of approximately 30–40 m²; actual suitability depends on insulation, ceiling height, sunlight exposure, and heat load.

Brand

Super Media

Model

SUM2T18PM

Product Type

Split Air Conditioner

Nominal Capacity

1.5 Ton

Operation Type

Cooling Only

Control Type

Remote Controller

Cooling Capacity — T1

18,500 BTU/h

Cooling Capacity — T3

16,200 BTU/h

Cooling Power Input — T3

1,895 W

Rated Current — T1

7.5 A

Rated Current — T3

8.5 A

EER — T1

11.53 (BTU/h)/W

EER — T3

8.55 (BTU/h)/W

Maximum Current

13 A

Compressor Brand

Copeland

Compressor Type

Piston

Compressor Model

CP20K8ME-PFZ-101

Power Supply

220–240 V / 50 Hz, Single Phase

Display

Hidden LED

Airflow Feature

4D Airflow

Timer

24-Hour On/Off

Additional Functions

Sleep Mode, Auto Clean, Auto Restart

Copper Tube

Inner-Grooved

Fin Features

Hydrophilic Aluminium Fins; Indoor Golden Fins

High-Temperature Operation

T3, up to 60°C as stated in catalog

Indoor Airflow

1,100 m³/h

Indoor Noise Level

47 dB(A)

Outdoor Noise Level

57 dB(A)

Indoor Dimensions (W × H × D)

1036 × 315 × 253 mm

Outdoor Dimensions (W × H × D)

890 × 320 × 700 mm

Indoor Packing Dimensions (W × H × D)

1090 × 380 × 312 mm

Outdoor Packing Dimensions (W × H × D)

1005 × 430 × 750 mm

Refrigerant Type

R410 — as printed in catalog

Refrigerant Charge

1,340 g

Refrigerant Pipe — Liquid Side

6 mm

Refrigerant Pipe — Gas Side

12 mm

Maximum Refrigerant Pipe Length

12 m

Maximum Height Difference

7 m

Suggested Application Area

30–40 m²
